Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBP23 (BN-YE) 22 | FUSE - 23 OR CIRCUIT BREAKER | ||
2 | * | * | Not Used | |
3 | VDN09 (WH-GN) | 22 | CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE | |
4 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
9U2Z-14S411-TA
WPT-1013
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses
Module - Auto Lamps
Sensor - Sunload

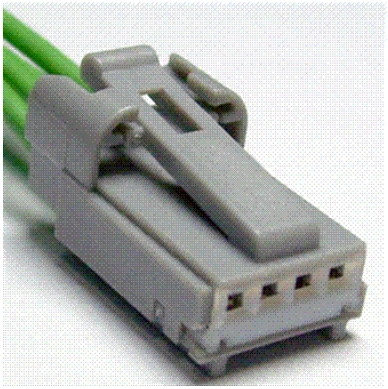

CONNECTOR VIEWS > CONNECTOR END VIEW C541 - FRONT DOOR LOCK SWITCH
LH
Connector:C541
Description
FRONT DOOR LOCK SWITCH LH
