CONNECTOR VIEWS > CONNECTOR END VIEW C535 - MASTER WINDOW CONTROL

SWITCH

Connector:C535

Description

MASTER WINDOW CONTROL SWITCH

Color

GY

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

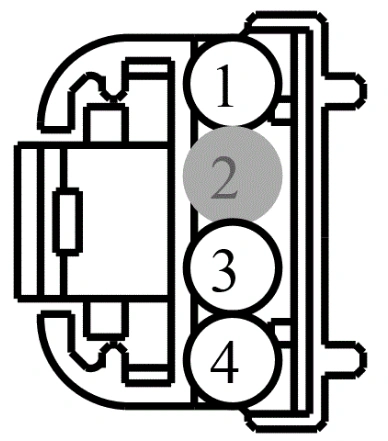

Connector End View C535 - Master Window Control Switch — original illustration 1, reference 3987Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
