Connector End View C525 - Front Door Latch Release Motor LH

OEM Connector End Views

Source configuration appliesSource reference 3,985HTML edition
← Chapter contentsManual collection

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

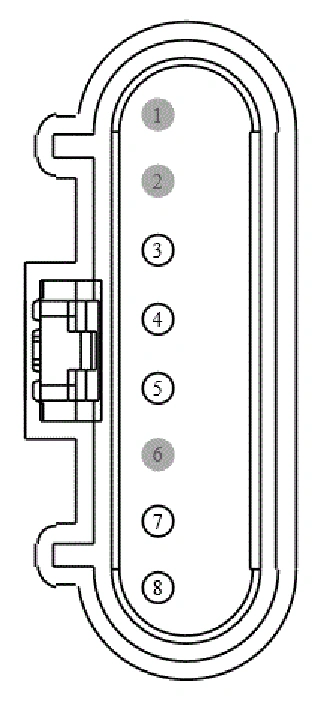

Connector End View C525 - Front Door Latch Release Motor LH — original illustration 1, reference 3985Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

CPL26 (GN-VT)

22

SWITCH - LATCH DRIVER # AJAR

Ford_Mustang_all_2015-2017.pdf · source reference 3985
