Connector End View C918 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,035HTML edition
← Chapter contentsManual collection
Connector End View C918 - Inline — original illustration 1, reference 4035Original colors & callouts · Select to enlarge

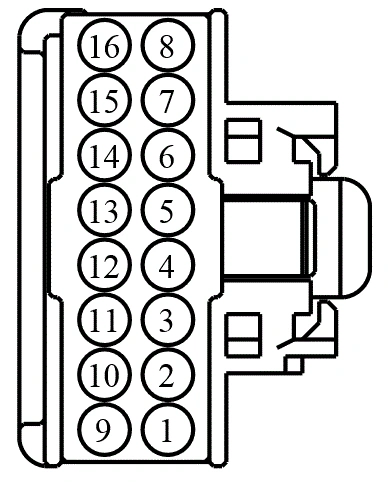

Connector End View C918 - Inline — original illustration 2, reference 4035Original colors & callouts · Select to enlarge
Pin Circuit Gauge Qualifier 1 SBP18 (YE-RD) 22 2 VLN33 (GY) 22 14334/14335 2 VLN33 (GY-VT) 22 14401

Original table alignment retained · Scroll horizontally if needed

Ford_Mustang_all_2015-2017.pdf · source reference 4035
