Connector End View C918 - Inline

OEM Connector End Views

Source configuration appliesSource reference 4,034HTML edition
← Chapter contentsManual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1096 AU2Z-14S411-ZA

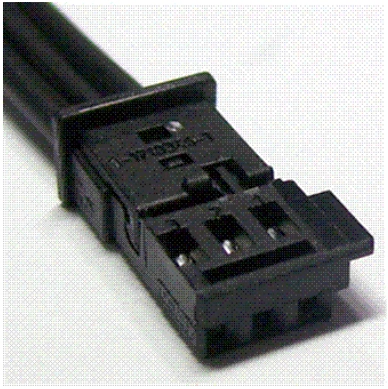

Connector End View C918 - Inline — original illustration 1, reference 4034Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Rain

CONNECTOR VIEWS > CONNECTOR END VIEW C918 - INLINE

InlineC918

Description

INLINE

Color

BK

Base Part #

Service Pigtail

See Below

MALE

Harness 14401

FEMALE

Harness 14334/14335

Ford_Mustang_all_2015-2017.pdf · source reference 4034
