Check for Terminal Part Numbers

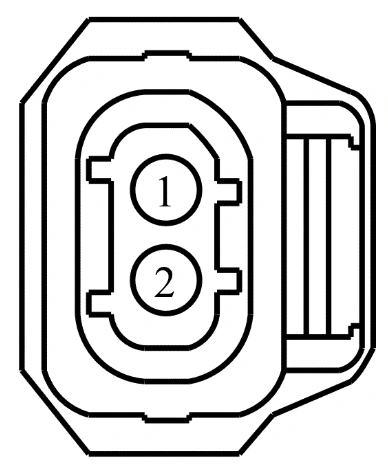

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE207 (VT-GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + | |
2 | RE207 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1302 | Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses |
