Description
Color
BK
Harness
12C508/14B060
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

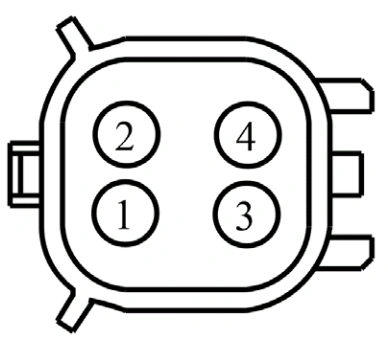

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) | |
1 | CBK02 (GN) | 16 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) | |
2 | CE234 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) | |
3 | RE249 (WH-GN) | 18 | CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 2ND |
