Connector End View C1570 - Heated Oxygen Sensor (Ho2s) #12 — OEM Connector End Views · Reference 4180

3	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)
4	VE733 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

CU2Z-14S411-ZA

WPT-1288

Gauge:

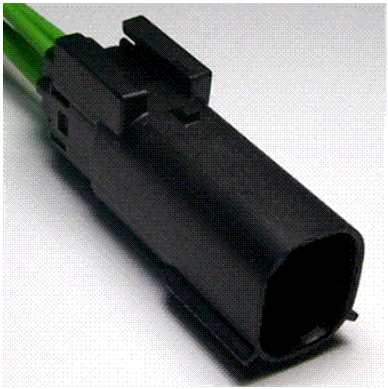

Connector End View C1570 - Heated Oxygen Sensor (Ho2s) #12 — original illustration 1, reference 4180Original colors & callouts · Select to enlarge

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Sensor - Catalyst Monitor

Sensor - O2 (HEGO/ EGO)

CONNECTOR VIEWS > CONNECTOR END VIEW C1570 - HEATED OXYGEN SENSOR

(HO2S) #12

Connector:C1570

Description

HEATED OXYGEN SENSOR (HO2S) #12

Color

Harness

12C508/14B060

Base Part #

part# N/A

Ford_Mustang_all_2015-2017.pdf · source reference 4180
