Connector End View C2353 - Clutch Pedal Position (Cpp) Bottom Of Travel Switch

OEM Connector End Views

Source configuration appliesSource reference 4,304HTML edition

Service Pigtail

See Below

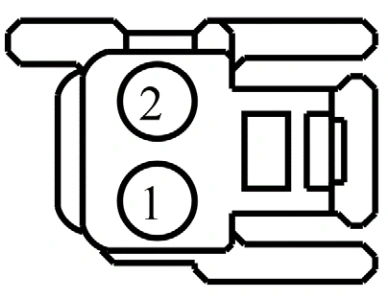

Connector End View C2353 - Clutch Pedal Position (Cpp) Bottom Of Travel Switch — original illustration 1, reference 4304Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE903 (BU-OG)	22	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)
2	GD120 (BK-GN)	22	GROUND - FENDER FRONT LEFT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-AEB

WPT-965

Gauge:

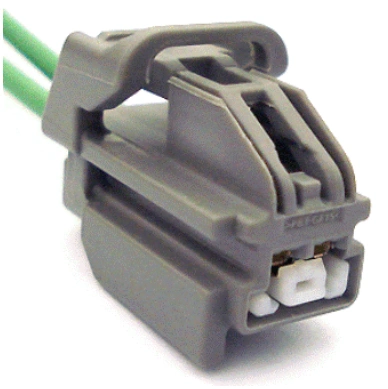

Connector End View C2353 - Clutch Pedal Position (Cpp) Bottom Of Travel Switch — original illustration 2, reference 4304Original colors & callouts · Select to enlarge

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate
