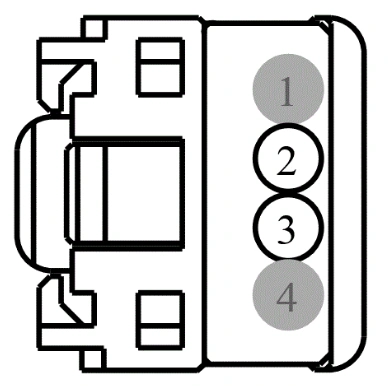

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | CE904 (GN-VT) | 22 | SWITCH - CLUTCH PEDAL POSITION # TOP OF TRAVEL (CPP-TT) | |
3 | GD120 (BK-GN) | 22 | GROUND - FENDER FRONT LEFT | |
4 | * | * | Not Used |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1139 | Service Part Number: 3U2Z-14S411-PRC Gauge: 18 Pin material: Silver Cavities: 4 |
