Check for Terminal Part Numbers

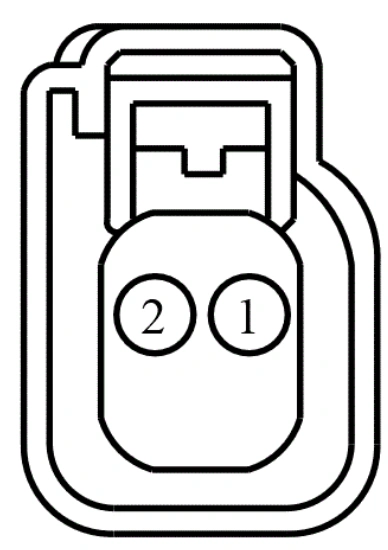

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + | |
2 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1052 | Service Part Number: 3U2Z-14S411-JLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 |
