Connector End View C2366 - Steering Wheel Switch LH Lower

OEM Connector End Views

Source configuration appliesSource reference 4,311HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1229 BU2Z-14S411-BNA

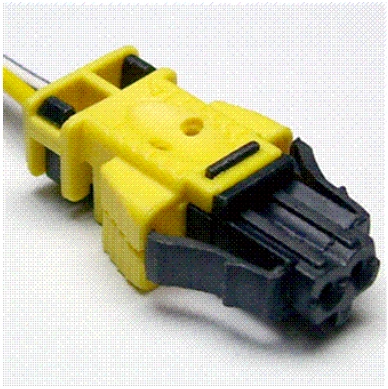

Connector End View C2366 - Steering Wheel Switch LH Lower — original illustration 1, reference 4311Original colors & callouts · Select to enlarge

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Deployable Steering Column

CONNECTOR VIEWS > CONNECTOR END VIEW C2366 - STEERING WHEEL SWITCH

LH LOWER

Connector:C2366

Description

STEERING WHEEL SWITCH LH LOWER

Color

Harness

14K147

Base Part #

part# N/A

Service Pigtail

See Below
