Connector End View C2360 - Deployable Steering Column

OEM Connector End Views

Source configuration appliesSource reference 4,310HTML edition

← Chapter contents Manual collection

Description

DEPLOYABLE STEERING COLUMN

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

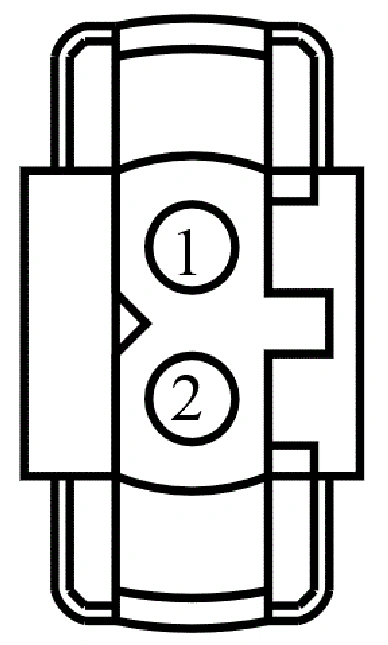

Connector End View C2360 - Deployable Steering Column — original illustration 1, reference 4310Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
2	RR168 (VT-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
