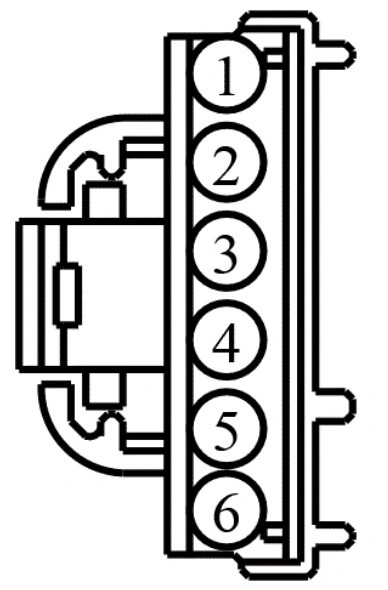

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * (*) | * | ILLUMINATION GROUND | |
2 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3 | |
3 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4 | |
4 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT) | |
5 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2 | |
6 | * (*) | * | ILLUMINATION FEED |
