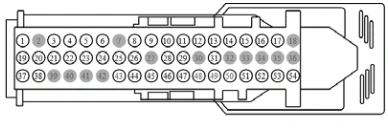

Check for Terminal Part Numbers
Pin Circuit Gauge Circuit Function Qualifier SBP32 1 22 FUSE - 32 OR CIRCUIT BREAKER (VT-RD) 2 * * Not Used VMN14 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA 3 26 (WH) GATEWAY MODULE # AUDIO OUT (MONO) + RMN14 CTRL MOD. - NAVIGATION/BLUETOOTH/MULTIMEDIA 4 26 (GY) GATEWAY MODULE # AUDIO OUT (MONO) - VMM23 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY without 5 26 (BN) MODULE # MICROPHONE PHONE/VOICE CONTROL + touchscreen RMM23 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY without 6 26 (WH) MODULE # MICROPHONE PHONE/VOICE CONTROL - touchscreen 7 * * Not Used with 8 LME89 (YE) 26 CTRL MOD. - MEDIA CONNECTIVITY POWER touchscreen CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 with 9 DME66 (*) 4 D touchscreen CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 with 10 VME66 (VT) 26 LEFT + touchscreen
Original table alignment retained · Scroll horizontally if needed
Ford_Mustang_all_2015-2017.pdf · source reference 4316
