AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Color

BK

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

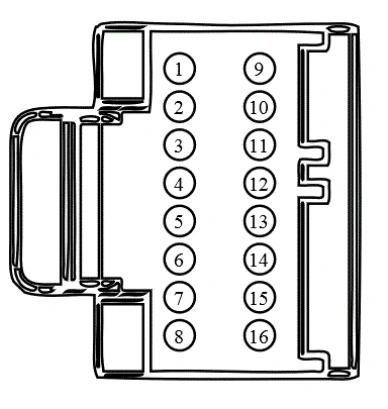

Connector End View C2385a - Audio Digital Signal Processing (Dsp) Module — original illustration 1, reference 4321Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RME61 (BU)

26

CTRL MOD. - AUDIO # RADIO RIGHT REAR -

2

VME61 (VT-WH)

26

CTRL MOD. - AUDIO # RADIO RIGHT REAR +

3

RME18 (YE)

26

CTRL MOD. - AUDIO # RADIO RIGHT -

4

VME18 (VT)

26

CTRL MOD. - AUDIO # RADIO RIGHT +
