Connector End View C2385b - Audio Digital Signal Processing (Dsp) Module

OEM Connector End Views

Source configuration appliesSource reference 4,323HTML edition

← Chapter contents Manual collection

Connector:C2385B

Description

AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

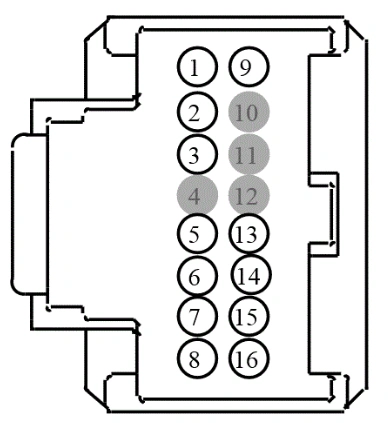

Connector End View C2385b - Audio Digital Signal Processing (Dsp) Module — original illustration 1, reference 4323Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	VME22 (VT-GN) 22		CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO +
2	RME22 (GN-WH)	22	CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO -
3	DME22 (*)	4	CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO D
