CONNECTOR VIEWS > CONNECTOR END VIEW C2385C - AUDIO DIGITAL SIGNAL

PROCESSING (DSP) MODULE

Connector:C2385C

Description

AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

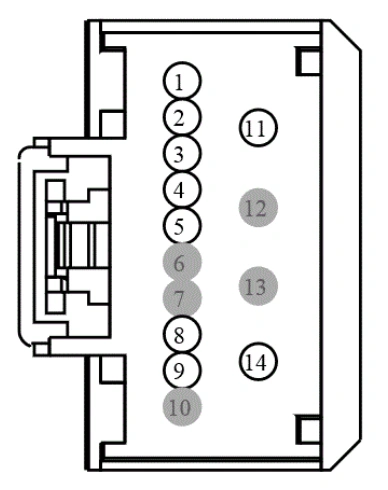

Connector End View C2385c - Audio Digital Signal Processing (Dsp) Module — original illustration 1, reference 4325Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CME31 (BU-GN) 22		CTRL MOD. - AUDIO # ENABLE 1
2	VME06 (GN)	18	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP +
