Connector End View C2398 - Global Positioning System Module (Gpsm)

OEM Connector End Views

Source configuration appliesSource reference 4,328HTML edition
← Chapter contentsManual collection
(BU-WH) 5 * * Not Used

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

6U2Z-14S411-SB

Pigtail Kit Part Number

Gauge:

WPT-983

18

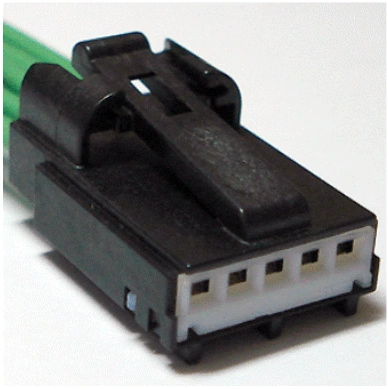

Connector End View C2398 - Global Positioning System Module (Gpsm) — original illustration 1, reference 4328Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

5

Vehicle Uses

Module - Heads Up Display

Switch - Overdrive Cancel

Switch - Power Window - LH - Rear

Switch - Power Window - Passenger (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C2398 - GLOBAL POSITIONING

SYSTEM MODULE (GPSM)

Connector:C2398

Description

GLOBAL POSITIONING SYSTEM MODULE (GPSM)

Color

BK

Harness

14401

Base Part #

Ford_Mustang_all_2015-2017.pdf · source reference 4328

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
