Connector End View C2398 - Global Positioning System Module (Gpsm)

OEM Connector End Views

Source configuration appliesSource reference 4,329HTML edition

← Chapter contents Manual collection

part# N/A

Service Pigtail

See Below

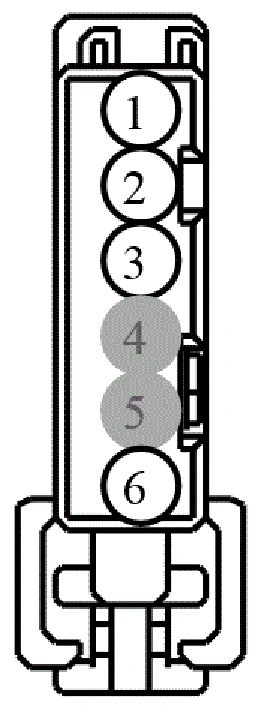

Connector End View C2398 - Global Positioning System Module (Gpsm) — original illustration 1, reference 4329Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	SBP32 (VT-RD) 22		FUSE - 32 OR CIRCUIT BREAKER
2	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	*	*	Not Used
