Connector End View C2402a - Front Controls Interface Module (Fcim)

OEM Connector End Views

Source configuration appliesSource reference 4,331HTML edition

Service Pigtail

Not Available

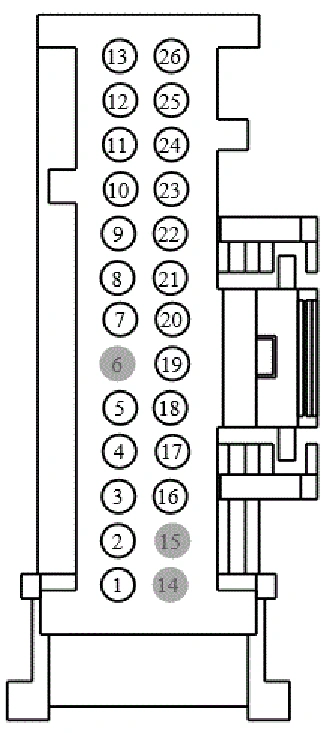

Connector End View C2402a - Front Controls Interface Module (Fcim) — original illustration 1, reference 4331Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
2	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # GENERIC VREF RETURN
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # GENERIC VREF
4	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
