Connector End View C2402a - Front Controls Interface Module (Fcim)

OEM Connector End Views

Source configuration appliesSource reference 4,330HTML edition

5	*	*	Not Used
6	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

6U2Z-14S411-LB

WPT-958

Gauge:

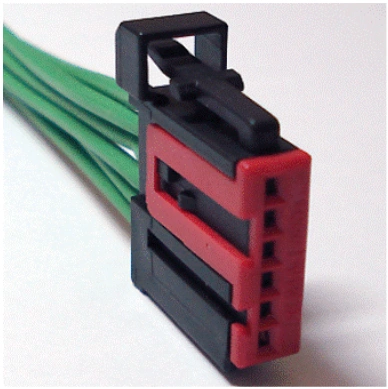

Connector End View C2402a - Front Controls Interface Module (Fcim) — original illustration 1, reference 4330Original colors & callouts · Select to enlarge

18 20

Pin material:

Tin & Silver

Cavities:

6

Vehicle Uses

Antenna - GPS

Module - Global Positioning

CONNECTOR VIEWS > CONNECTOR END VIEW C2402A - FRONT CONTROLS

INTERFACE MODULE (FCIM)

Connector:C2402A

Description

FRONT CONTROLS INTERFACE MODULE (FCIM)

Color

Harness

14401

Base Part #

part# N/A
