Connector End View C2395 - Head Up Display (Hud) Module

OEM Connector End Views

Source configuration appliesSource reference 4,327HTML edition

← Chapter contents Manual collection

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

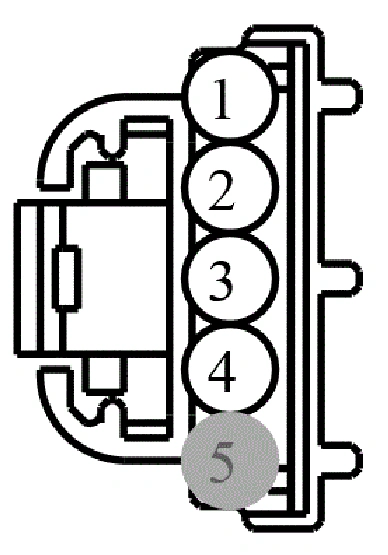

Connector End View C2395 - Head Up Display (Hud) Module — original illustration 1, reference 4327Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE
2	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
3	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
4	CBB66	22	FUSE - 66 OR CIRCUIT BREAKER
