Connector End View C2402b - Front Controls Interface Module (Fcim)

OEM Connector End Views

Source configuration appliesSource reference 4,334HTML edition

part# N/A

Service Pigtail

Not Available

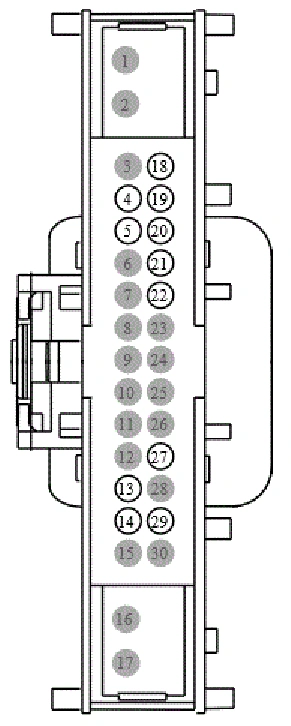

Connector End View C2402b - Front Controls Interface Module (Fcim) — original illustration 1, reference 4334Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	VH409 (WH)	22	SENSOR - DISCHARGE TEMP. # LEFT
5	VH410 (GY)	26	SENSOR - DISCHARGE TEMP. # LEFT 2ND
