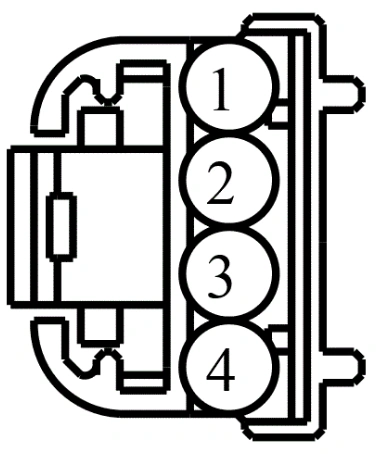

Service Pigtail
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * (*) | * | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | |
2 | * (*) | * | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
3 | * (*) | * | GROUND - CROSS CAR BEAM # 2ND POINT | |
4 | * (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1013 | Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: |
