Connector End View C3201 - Driver Safety Belt Buckle

OEM Connector End Views

Source configuration appliesSource reference 4,388HTML edition
← Chapter contentsManual collection

14D231

Base Part #

part# N/A

Service Pigtail

See Below

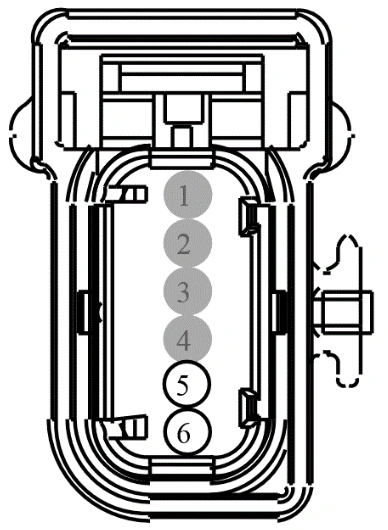

Connector End View C3201 - Driver Safety Belt Buckle — original illustration 1, reference 4388Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

*

*

Not Used

4

*

*

Not Used

5

CR201 (GN-BU)

18

SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE

6

GD901 (BK)

20

GROUND - DRIVER SEAT # RESTRAINTS

Ford_Mustang_all_2015-2017.pdf · source reference 4388
