Check for Terminal Part Numbers

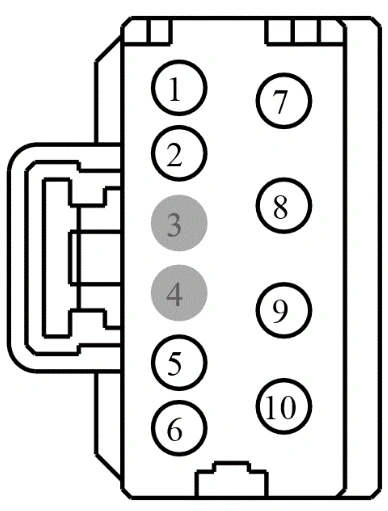

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. PASSENGER REARWARD | |
2 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. PASSENGER FORWARD | |
3 | * | * | Not Used | |
4 | * | * | Not Used | |
5 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. PASSENGER FRONT HEIGHT (TILT) DOWN | |
6 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. PASSENGER FRONT HEIGHT (TILT) UP | |
7 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. PASSENGER REAR HEIGHT DOWN |
