Connector End View C3119 - Power Window Motor Right Rear

OEM Connector End Views

Source configuration appliesSource reference 4,383HTML edition

← Chapter contents Manual collection

BU2Z-14S411-ASA

Gauge:

WPT-1209

12 18

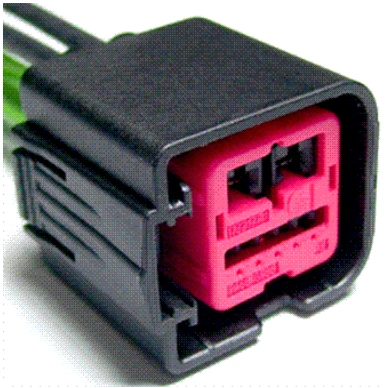

Connector End View C3119 - Power Window Motor Right Rear — original illustration 1, reference 4383Original colors & callouts · Select to enlarge

Pin material:

Tin & Silver

Cavities:

7

Vehicle Uses

Motor - Power Window - LH - Front

Motor - Power Window - LH - Rear

Motor - Power Window - RH - Front

Motor - Power Window - RH - Rear

CONNECTOR VIEWS > CONNECTOR END VIEW C3119 - POWER WINDOW MOTOR

RIGHT REAR

Connector:C3119

Description

POWER WINDOW MOTOR RIGHT REAR

Color

Harness

14A411

Base Part #

part# N/A

Service Pigtail

See Below
