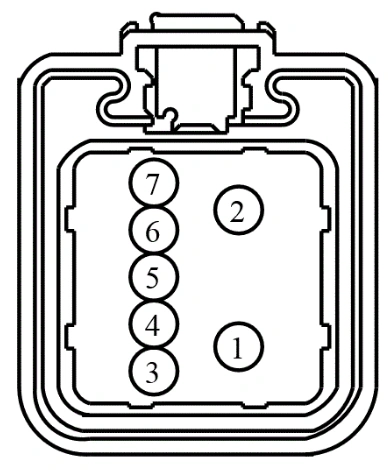

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP30 (BN-RD) | 14 | FUSE - 29 OR CIRCUIT BREAKER | |
2 | GD348 (BK-YE) | 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
3 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
4 | CPW25 (YE-BU) | 22 | SWITCH - REAR WINDOW FLIP # LEFT CLOSE | |
5 | CPW26 (BU-BN) | 22 | SWITCH - REAR WINDOW FLIP # LEFT OPEN | |
6 | CPW73 (GN-VT) | 22 | CTRL MOD. - POWER WINDOW GLOBAL DOWN | |
7 | CPW53 (YE-OG) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN |
Available Pigtail Kits | |
Pigtail Kit Part Number | Service Part Number: |
