Connector End View C3118 - Power Window Motor Left Rear

OEM Connector End Views

Source configuration appliesSource reference 4,381HTML edition

← Chapter contents Manual collection

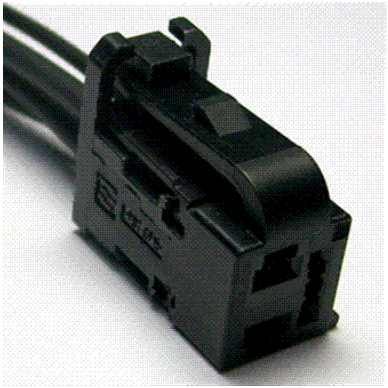

Connector End View C3118 - Power Window Motor Left Rear — original illustration 1, reference 4381Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

4

Vehicle Uses

Motor - Seat Height (Front)

Motor - Seat Recline

CONNECTOR VIEWS > CONNECTOR END VIEW C3118 - POWER WINDOW MOTOR

LEFT REAR

Connector:C3118

Description

POWER WINDOW MOTOR LEFT REAR

Color

Harness

14A411

Base Part #

part# N/A

Service Pigtail

See Below
