CONNECTOR VIEWS > CONNECTOR END VIEW C3074 - FRONT SEAT FRONT TILT

MOTOR RH

Connector:C3074

Description

FRONT SEAT FRONT TILT MOTOR RH

Color

DK GY

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

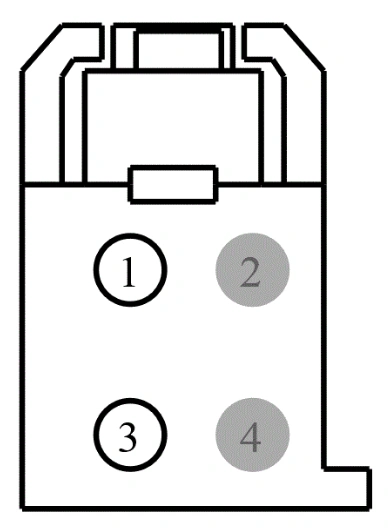

Connector End View C3074 - Front Seat Front Tilt Motor RH — original illustration 1, reference 4378Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS24 (GY)	14	SWITCH - SEAT ADJUST. PASSENGER FRONT HEIGHT (TILT) DOWN
