Connector End View C3066 - Front Safety Belt Anchor And Pretensioner RH

OEM Connector End Views

Source configuration appliesSource reference 4,377HTML edition
← Chapter contentsManual collection

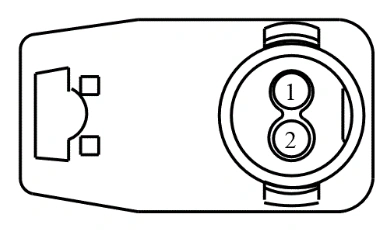

Connector End View C3066 - Front Safety Belt Anchor And Pretensioner RH — original illustration 1, reference 4377Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR122 (WH-OG)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD +

2

RR122 (BN)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD -

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number BU2Z-14S411-BKA

WPT-1227 Gauge:

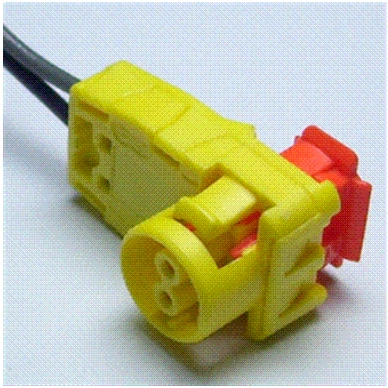

Connector End View C3066 - Front Safety Belt Anchor And Pretensioner RH — original illustration 2, reference 4377Original colors & callouts · Select to enlarge

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
