CONNECTOR VIEWS > CONNECTOR END VIEW C3065 - FRONT SAFETY BELT

ANCHOR AND PRETENSIONER LH

Connector:C3065

Description

FRONT SAFETY BELT ANCHOR AND PRETENSIONER LH

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

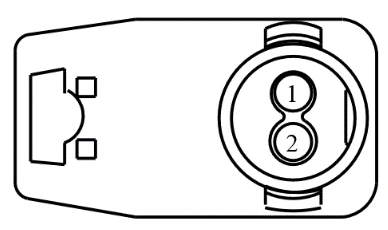

Connector End View C3065 - Front Safety Belt Anchor And Pretensioner LH — original illustration 1, reference 4375Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR120 (BU-OG)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +

2

RR120 (BN-GN)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

Ford_Mustang_all_2015-2017.pdf · source reference 4375
