Connector End View C3075 - Front Seat Height Adjustment Motor RH

OEM Connector End Views

Source configuration appliesSource reference 4,379HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

DU2Z-14S411-UA

WPT-1350

Gauge:

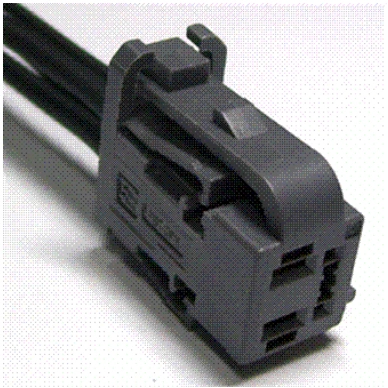

Connector End View C3075 - Front Seat Height Adjustment Motor RH — original illustration 1, reference 4379Original colors & callouts · Select to enlarge

16 20

Pin material:

Tin

Cavities:

4

Vehicle Uses

Motor - Power Seat Track

Motor - Seat Height (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C3075 - FRONT SEAT HEIGHT

ADJUSTMENT MOTOR RH

Connector:C3075

Description

FRONT SEAT HEIGHT ADJUSTMENT MOTOR RH

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below
