Connector End View C3370 - Scuff Plate Lamp Passenger

OEM Connector End Views

Source configuration appliesSource reference 4,415HTML edition

← Chapter contents Manual collection

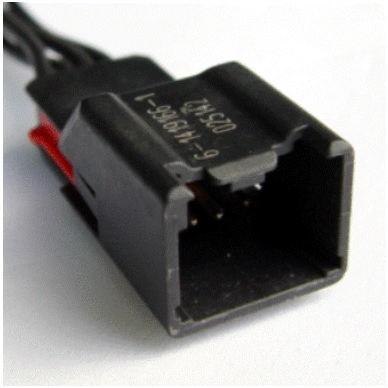

Connector End View C3370 - Scuff Plate Lamp Passenger — original illustration 1, reference 4415Original colors & callouts · Select to enlarge

Vehicle Uses

Element - Heated Seat

Lamp - License

CONNECTOR VIEWS > CONNECTOR END VIEW C3370 - SCUFF PLATE LAMP

PASSENGER

Connector:C3370

Description

SCUFF PLATE LAMP PASSENGER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
