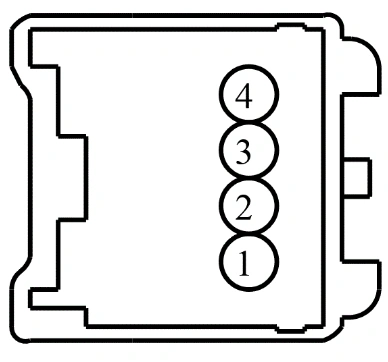

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLN53 (WH-BU) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 3 # LED BLUE + | |
2 | CLN52 (WH-GN) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 3 # LED GREEN + | |
3 | CLN51 (WH-OG) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 3 # LED RED + | |
4 | RLN44 (BN) | 26 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-394 | Service Part Number: 3U2Z-14S411-KNA Gauge: 18 Pin material: Tin |
