Assembly

OEM Connector End Views

Source configuration appliesSource reference 4,419HTML edition

← Chapter contents Manual collection

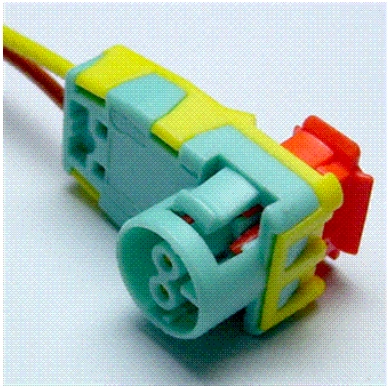

Assembly — original illustration 1, reference 4419Original colors & callouts · Select to enlarge

FCI - Airbag

Cavities:

2

Vehicle Uses

Squib - Airbag (Passenger)

CONNECTOR VIEWS > CONNECTOR END VIEW C3463 - CENTER CONSOLE LOCK

ASSEMBLY

Connector:C3463

Description

CENTER CONSOLE LOCK ASSEMBLY

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Assembly — original illustration 2, reference 4419Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
