Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | ZA104 (OG-GN) | 14 | CTRL MOD. - DOUBLE/AUX LOCK RELAY # LOCK | |
2 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
3 | RLN44 (BN) | 26 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - | |
4 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number 3U2Z-14S411-FFB
WPT-1016 Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses
Motor - Steering Column Adjust
Speaker - Subwoofer
Transceiver - Passive Anti-Theft (PATS)

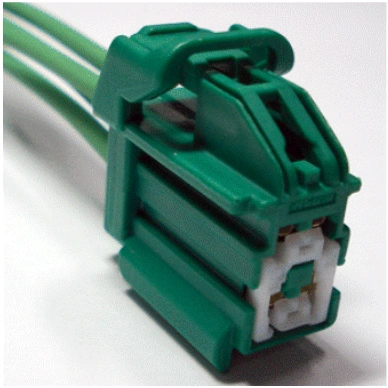

CONNECTOR VIEWS > CONNECTOR END VIEW C3464 - DRIVER UPPER SIDE
