Connector End View C3465 - Passenger Upper Side Airbag

OEM Connector End Views

Source configuration appliesSource reference 4,423HTML edition
← Chapter contentsManual collection

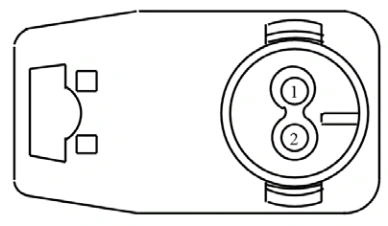

Connector End View C3465 - Passenger Upper Side Airbag — original illustration 1, reference 4423Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR105 (GN-BU)

20

CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE +

2

RR105 (GY-YE)

20

CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE -

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number BU2Z-14S411-BKA

WPT-1227 Gauge:

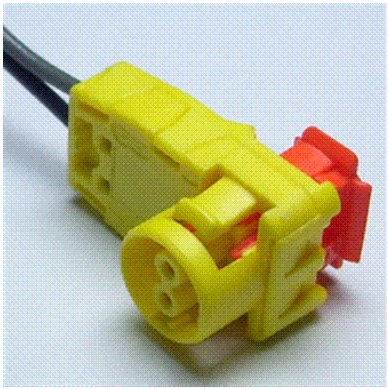

Connector End View C3465 - Passenger Upper Side Airbag — original illustration 2, reference 4423Original colors & callouts · Select to enlarge

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
