(YE-OG) (FRONT) - 3 * * Not Used 4 * * Not Used
Original table alignment retained · Scroll horizontally if needed
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number CU2Z-14S411-AGA
WPT-1307 Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses
Antenna - Keyless Entry
Sensor - Brake Pedal Position
Sensor - Clutch Master Cylinder

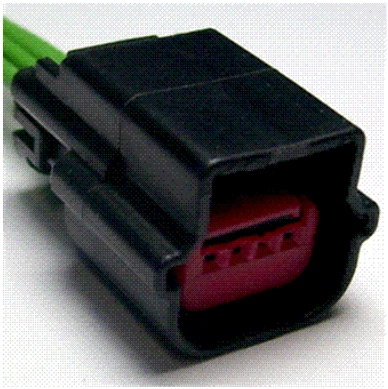

CONNECTOR VIEWS > CONNECTOR END VIEW C3618 - MEDIA HUB
Connector:C3618
Description
MEDIA HUB
Color
GY
Harness
14401
Base Part #
