Connector End View C3513 - Passive Anti-Theft System (PATS) Front Antenna

OEM Connector End Views

Source configuration appliesSource reference 4,424HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C3513 - PASSIVE ANTI-THEFT

SYSTEM (PATS) FRONT ANTENNA

Connector:C3513

Description

PASSIVE ANTI-THEFT SYSTEM (PATS) FRONT ANTENNA

Color

BK

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

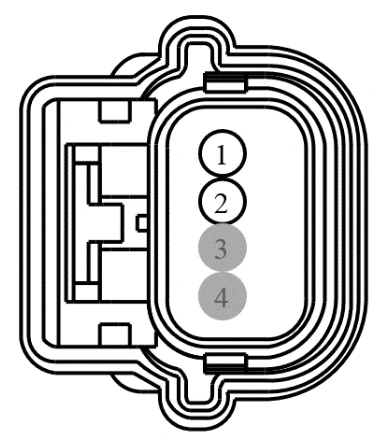

Connector End View C3513 - Passive Anti-Theft System (PATS) Front Antenna — original illustration 1, reference 4424Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VPK05 (BN-GN)

20

CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +

2

RPK05

20

CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1

Ford_Mustang_all_2015-2017.pdf · source reference 4424

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
