Connector End View C3464 - Driver Upper Side Airbag

OEM Connector End Views

Source configuration appliesSource reference 4,421HTML edition

← Chapter contents Manual collection

Connector:C3464

Description

DRIVER UPPER SIDE AIRBAG

Color

Harness

14C687/14D232

Base Part #

part# N/A

Service Pigtail

See Below

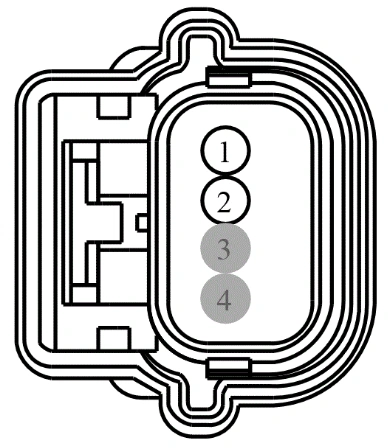

Connector End View C3464 - Driver Upper Side Airbag — original illustration 1, reference 4421Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR105 (GN-BU)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE +
2	RR105 (GY-YE)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE -

Available Pigtail Kits

Ford_Mustang_all_2015-2017.pdf · source reference 4421

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
