Connector End View C3465 - Passenger Upper Side Airbag

OEM Connector End Views

Source configuration appliesSource reference 4,422HTML edition

← Chapter contents Manual collection

Service Part Number:

Pigtail Kit Part Number BU2Z-14S411-BKA

WPT-1227 Gauge:

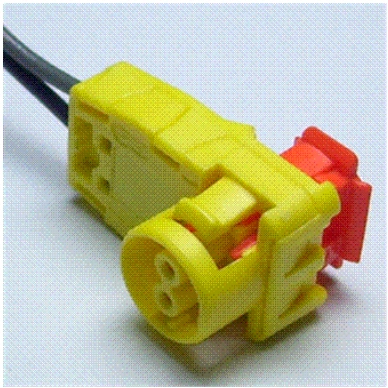

Connector End View C3465 - Passenger Upper Side Airbag — original illustration 1, reference 4422Original colors & callouts · Select to enlarge

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)

CONNECTOR VIEWS > CONNECTOR END VIEW C3465 - PASSENGER UPPER SIDE

AIRBAG

Connector:C3465

Description

PASSENGER UPPER SIDE AIRBAG

Color

Harness

14D233

Base Part #

part# N/A

Service Pigtail

See Below
