Connector End View C3618 - Media Hub

OEM Connector End Views

Source configuration appliesSource reference 4,426HTML edition
← Chapter contentsManual collection

part# N/A

Service Pigtail

See Below

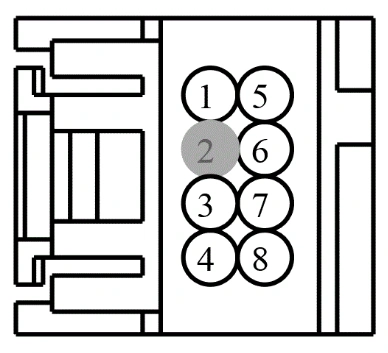

Connector End View C3618 - Media Hub — original illustration 1, reference 4426Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LME89 (YE)

26

CTRL MOD. - MEDIA CONNECTIVITY POWER

2

*

*

Not Used

3

VME66 (VT)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 LEFT +

4

RME66 (GN)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 LEFT -

5

VME67 (GY)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT +

6

RME67 (BN)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 RIGHT -

7

DME66 (*)

4

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # AUDIO 2 D
