Connector End View C4368b - Body Control Module B

OEM Connector End Views

Source configuration appliesSource reference 4,464HTML edition

Service Pigtail

Not Available

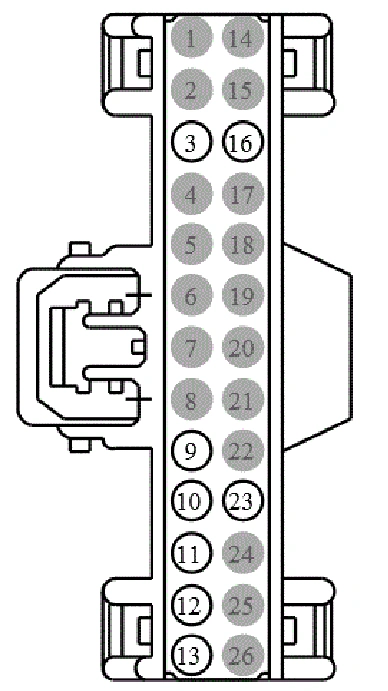

Connector End View C4368b - Body Control Module B — original illustration 1, reference 4464Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	CPW47 (VT-OG)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN
4	*	*	Not Used
5	*	*	Not Used
