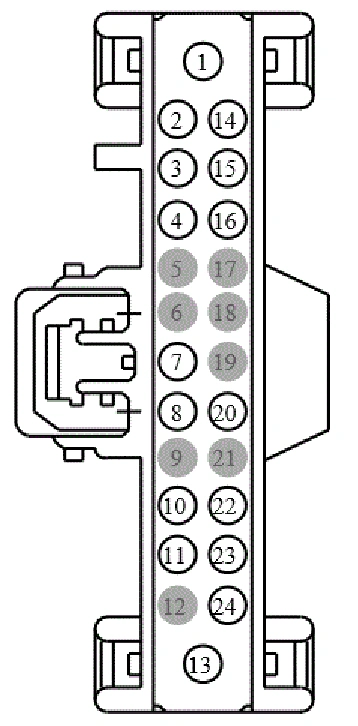

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP28 (GN-RD) | 16 | FUSE - 28 OR CIRCUIT BREAKER | |
2 | CLS51 (WH-GN) | 22 | CTRL MOD. - STOP/TURN LEFT OUTBOARD | |
3 | CLS50 (BN-VT) 22 | CTRL MOD. - STOP/TURN LEFT MIDDLE | ||
4 | CLS18 (GY-BN) 22 | CTRL MOD. - STOP/TURN LEFT (INBOARD) | ||
5 | * | * | Not Used |
