Connector End View C4368a - Body Control Module B

OEM Connector End Views

Source configuration appliesSource reference 4,460HTML edition

← Chapter contents Manual collection

Pigtail Kit Part Number Service Part Number:

WPT-1280 CU2Z-14S411-AEA

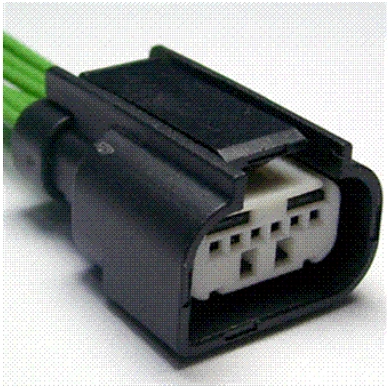

Connector End View C4368a - Body Control Module B — original illustration 1, reference 4460Original colors & callouts · Select to enlarge

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses

Camera - Reverse Park Aid

CONNECTOR VIEWS > CONNECTOR END VIEW C4368A - BODY CONTROL MODULE

B

Connector:C4368A

Description

BODY CONTROL MODULE B

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
