Base Part #
Service Pigtail
See Below
Check for Terminal Part Numbers

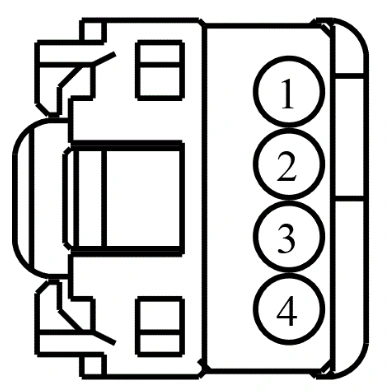

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPL58 (GY) | 26 | SWITCH - LIFTGATE/DECKLID # GLASS AJAR | |
2 | CLN13 (WH-BU) | 22 | SWITCH - TRUNK/CARGO LAMP | |
3 | CPL59 (BN-BU) | 20 | RELAY - DOOR LOCK # LIFTGATE GLASS RELEASE | |
4 | GD348 (BK-YE) | 18 | GROUND - PILLAR C OR QUARTER PANEL RIGHT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1055 | Service Part Number: 3U2Z-14S411-KYB Gauge: |
Ford_Mustang_all_2015-2017.pdf · source reference 4457
