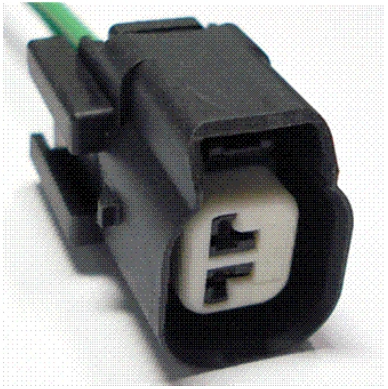

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPL60 (BN-YE) | 22 | SWITCH - LIFTGATE GLASS RELEASE | |
2 | GD301 (BK-BU) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT |
Available Pigtail Kits
Service Part Number:
3U2Z-14S411-BXAB
Gauge:
16
Pin material:
Silver
Pigtail Kit Part Number
Cavities:
WPT-984
2
Vehicle Uses
A/C Compressor Clutch
EGR Cooler Outlet
Electronic Locking Differential
Horn
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Rear Park
Lamp - Reverse
Lamp - Side Marker
Motor - Adjustable Pedal
Sensor - Adjustable Pedal
Sensor - Brake Fluid Level
Sensor - Cam Shaft Position
