CONNECTOR VIEWS > CONNECTOR END VIEW C4333 - LUGGAGE COMPARTMENT

LID REAR CONTROL SWITCH

Connector:C4333

Description

LUGGAGE COMPARTMENT LID REAR CONTROL SWITCH

Color

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below

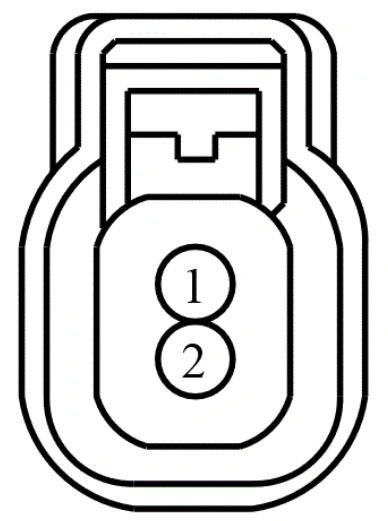

Connector End View C4333 - Luggage Compartment Lid Rear Control Switch — original illustration 1, reference 4454Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Ford_Mustang_all_2015-2017.pdf · source reference 4454
